Closed T Shape Hollow Guide Rail Roll Forming Making Machine
- Total Power:450KW
- Machine Speed:0-30m/min
- Floor Size:59*8*3M
- Forming Material:Q235 Galvanized strip
- Feeding Strip Width:Max.250mm
- Strip Thickness:1.5/2.0mm
- Decoiler:Max.OD2000mm Capacity Max.4000kg
- Looper: Diameter 4500mm, Storage Capacity Max.8000kg
- Sizing Length:0-5000mm

Introduction of Closed Hollow Guide Rail

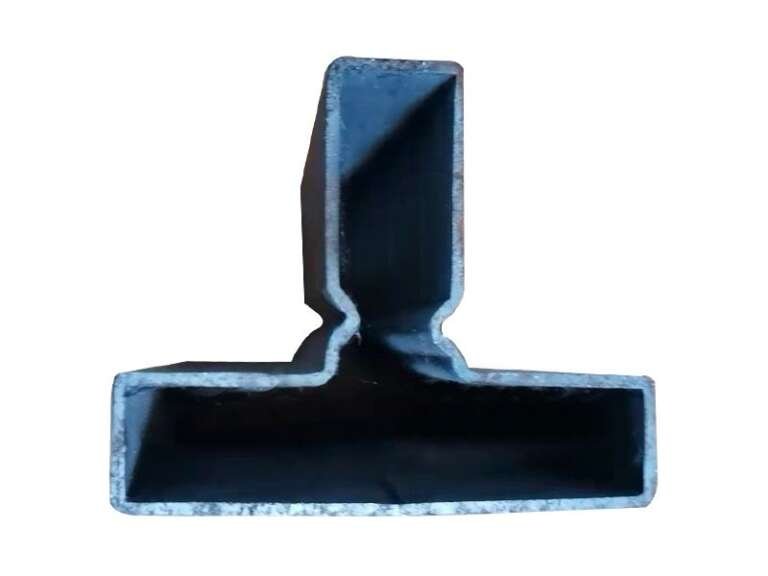

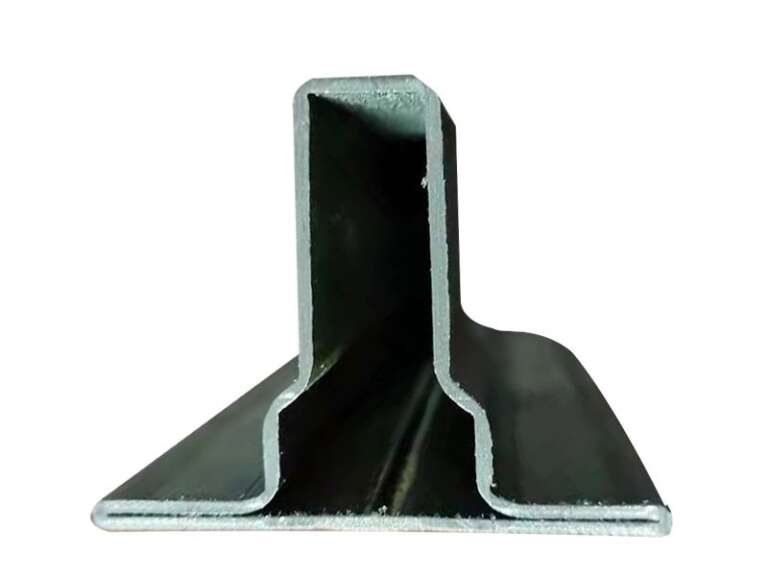

The closed section elevator pair reuse hollow guide rail, and the cross section of the guide rail is an inverted T shape with symmetrical shapes on both sides of the hollow; The bottom of the section is the section of the horizontal guide rail back, the sections of two guide rail surfaces equidistant from the midpoint are vertically arranged above the section of the guide rail back, and the sections of the guide surface parallel to the section of the guide rail back are arranged at the ends of the sections of the two guide rail surfaces to form a closed section. The beneficial effect is that the elevator has a closed section for reusing the hollow guide rail, The three guide surfaces of the hollow guide rail and the guide shoe lining plate are plane contact guide. In the process of cold bending and rolling forming of thin plate to manufacture the guide rail, the welding process is adopted to enhance the bending section modulus. The two ends and upper ends of the hollow guide rail are locally rounded chamfered to ensure the smooth connection of the adjacent two guide rails during installation. The cavity of the hollow guide rail is filled with polyurethane, It can reduce the noise in the car when the elevator is running, and can be widely used for counterweight guidance of elevator without safety gear with counterweight with load capacity ≤ 1000 kg and speed ≤ 1.75 M / s
The advantages of using closed T shaped hollow guide rail instead of TK3A and TK5A hollow guide rail are:
- Closed hollow guide rail is more stable
- The material of closed hollow guide rail is galvanized plate, which can save cost more than TK3A and TK5A hollow guide rail
- The noise of closed hollow guide rail is low
- The bearing capacity of closed hollow guide rail is greater than TK3A and TK5A hollow guide rail

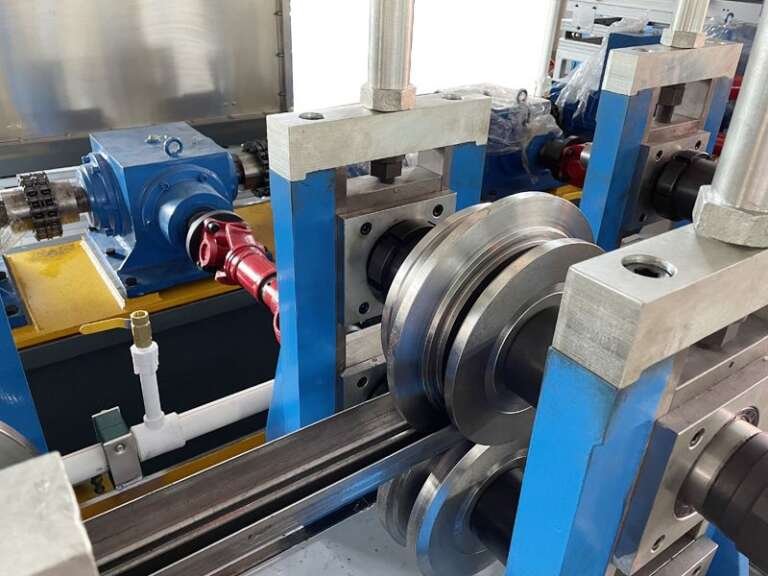

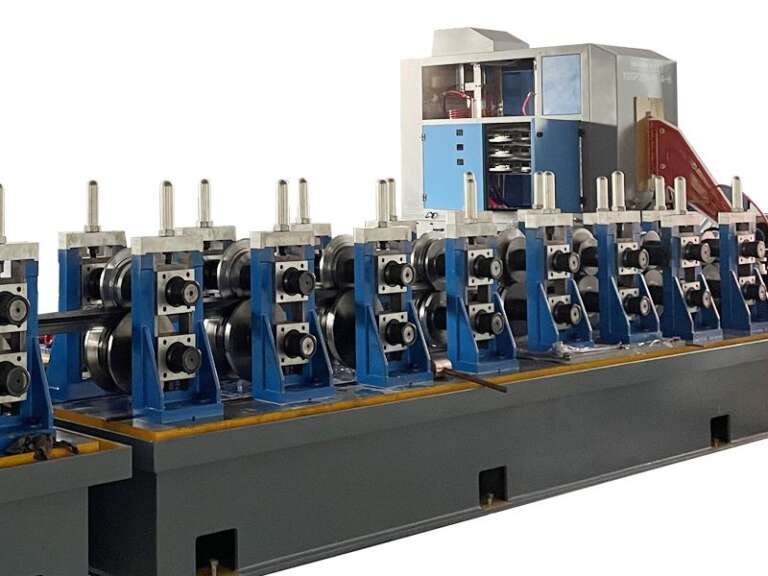

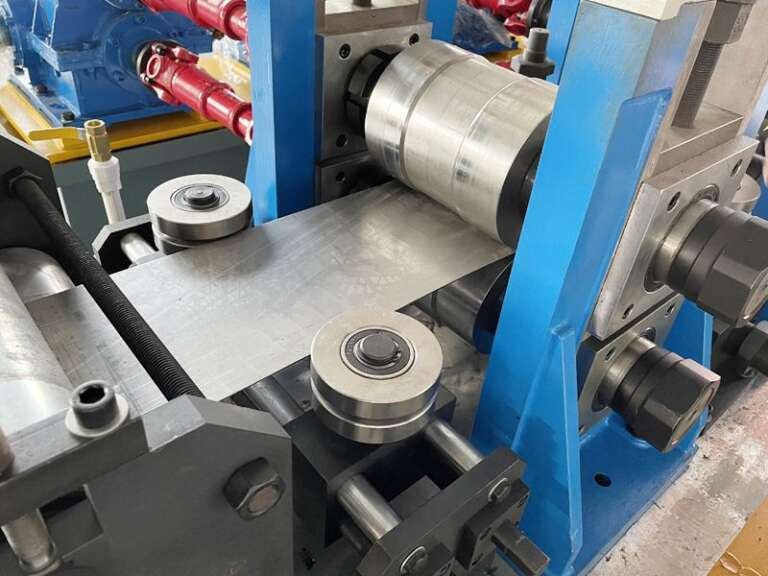

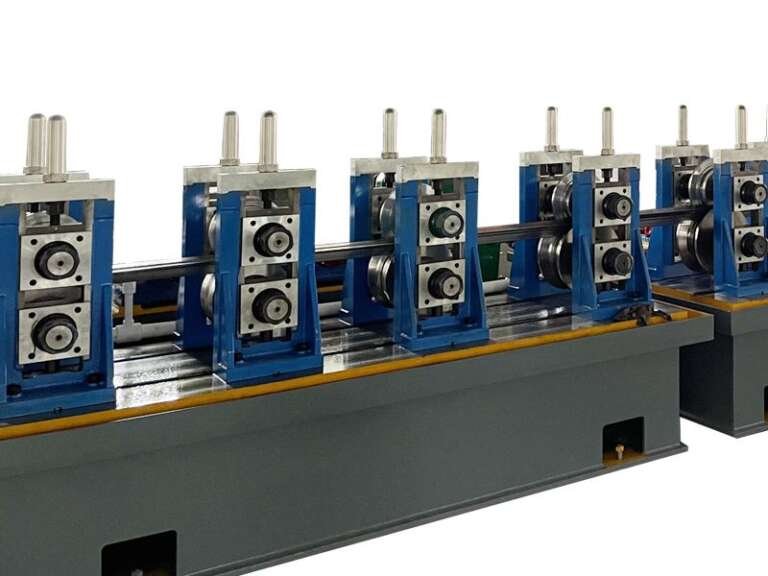

Roll Forming Device
Forming Motor Power: 110KW
Forming Shaft Diameter:80mm
Forming Shaft Material: Cr12
Roller Mold Material: Cr12Mov
Forming Speed: 0-30m/min

Welding Device
Sizing Motor Power:37KW
High Frequency Motor Power:200KW
Shaft Diameter: 80mm
Shaft Material: Cr12
Roller Mold Material: Cr12Mov

Cutting Device
Advantages of Cold Flying Saw:
- Cutting Accuracy:±5mm
- Less burr
