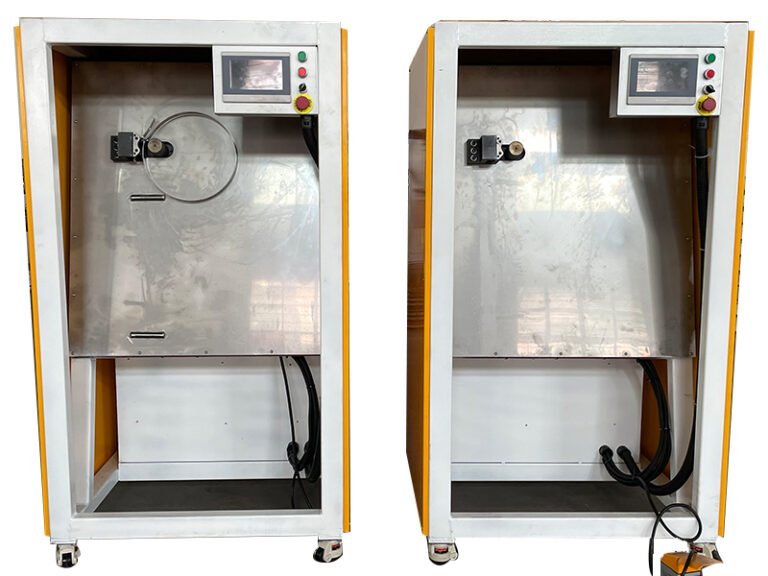

Band Clamp Mounting Strap Forming And Rolling Machine
This equipment is designed and produced according to the requirements of Party A and the relevant technical parameters, after repeated arguments, it can roll carbon steel, stainless steel and other strip materials into 150-400mm diameter rings, realizing semi-automatic, this equipment has the advantages of generous appearance, reasonable structure, strong practicality, convenient operation, good safety protection, etc.
Technical parameters and description of the machine
No | Project | Technical requirements |
1 | Floor space | 1×1×1.7（L×W×H）M |
2 | Voltage | 380V，50Hz， |
3 | Thickness of belt material | 0.5-4MM |
4 | Strip length | 450-1450（customisable） |
5 | Strip width | 10-50MM（customisable） |
6 | Speed | ≈10S/Pieces（workpiece size varies） |
7 | Total power | ≈1.5KW |
Video of the work
Equipment composition and main description
1 . Working platform
It is made of high quality profiles and plates welded together, covered with stainless steel plates on the outside, with beautiful appearance and high strength.

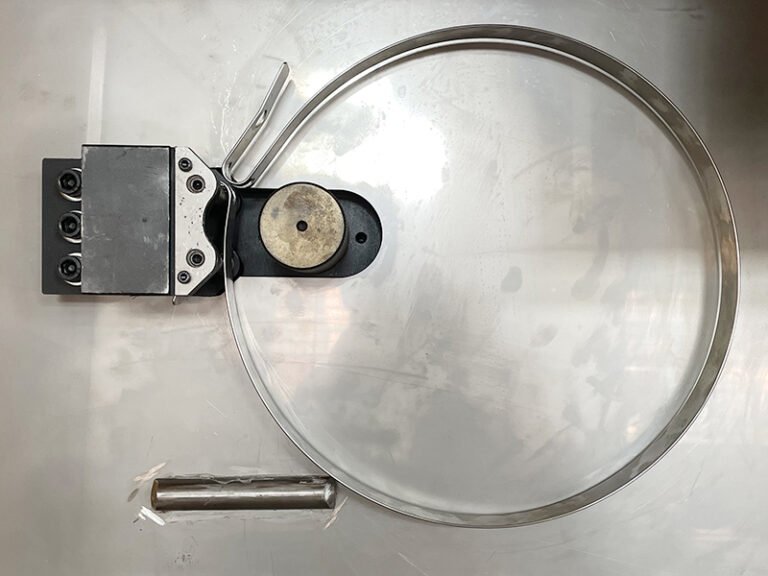

2 . Rolling device
Adopt screw drive, two servo motors control the distance and rotation respectively, the speed is adjustable to ensure smoothness and precision. The rotating roller is made of special wear-resistant material, with special bearings to ensure precision, strength and durability.
Control system
The equipment is operated by one person, the system can store several different specifications of products, need to do a certain specification of products can retrieve the product number, easy to operate, the equipment is equipped with an emergency stop switch to ensure safety.
Electrical component brands
No | Item | Brand | Remarks |
1 | PLC | Delta | |
2 | Touch Screen | FLEXEM | |
3 | Control Components | Astronergy | |
4 | Induction switches | ||
5 | Servo motors | Sinee | |
6 | Rotary encoders | Tamagawa |
