Category: Elevator Guide Rail Production Line Collection

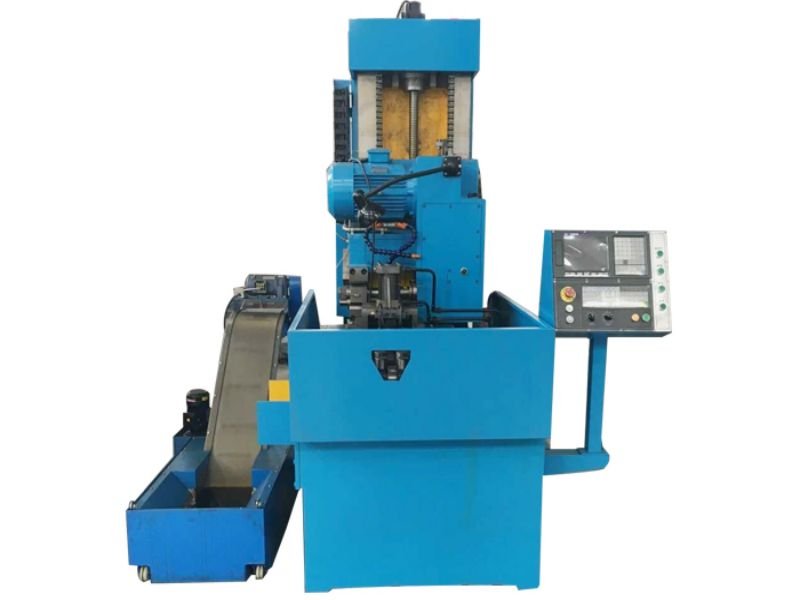

Elevator Guide Rail CNC Milling Machine Type: For T70B T89 T90 T140B Elevator Guide Rails Machining Accuracy: ≤0.05mm Diameter Of Cutter Head: Φ 200mm Control: PLC Workbench Working Speed: 300～600mm Adjustable GET A QUOTE! Elevator Guide Rail CNC Milling Machine Overview Elevator Guide Rail CNC Milling Machine consists of power head components, table components, fixture components, chip removal components, lubrication system, hydraulic system, electrical control and other major components. This machine tool is designed and manufactured by our company according to the processing requirements and processing technology of the T70B ~ T140B elevator guide rail, which is specially used for the processing of the end faces and large back faces of the elevator guide rail. The machine tool is driven by servo motor and ball screw. All the movements use PLC automatic control. It can guarantee the automatic control of fast forward, milling end, fast forward, fast forward and milling back to the end, and return to the original point quickly. The touch screen is easy to understand and easy to adjust. The guide rail of machine tool is lubricated by automatic lubricating pump to reduce wear and improve the service life of machine tools. The ball screw of machine

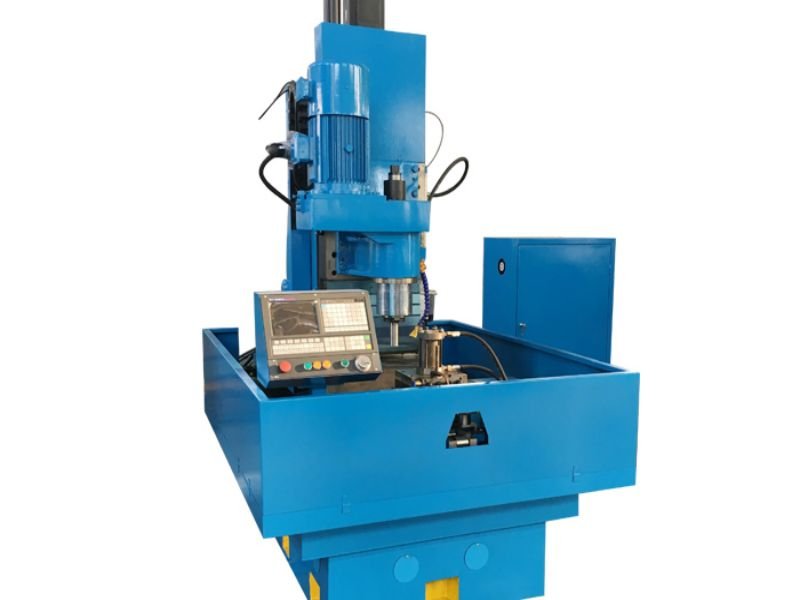

The Rotational Speed Of The Spindle Of The Drill Head: 0 ~ 1500r/min (adjustable) Left And Right Moving Stroke: 300mm The Fastest Moving Speed In The Three Direction: 15m/min Rated Power Of The Spindle Motor Of The Drill Head: 7.5KW Design Height: 860mm GET A QUOTE! Summary of Elevator Guide Rail CNC Drilling Machine The Elevator Guide Rail CNC Drilling Machine adopts the precision drive parts such as servo motor, ball screw, linear guide and so on. All the movements are controlled by numerical control. It can guarantee automatic transposition, automatic feeding, automatic retreating and returning to the original point. The machine tool is lubricated by automatic lubricating pump to reduce wear and improve the service life of machine tools, use pressure circulating water cooling, prolong tool repair period, and have all kinds of necessary safety protection devices and protective cover to ensure the safety of operators and machine tools. Main specifications and technical parameters 1 Specifications for adapting to the guide rail of the processing elevator T70 ~T140   2 Left and right moving stroke 300 mm 3 Column moving forward and backward 300 mm 4 Drill head up and down movement stroke 350 mm 5 The fastest moving
