Category: Elevator Guide Rail Production Line Collection

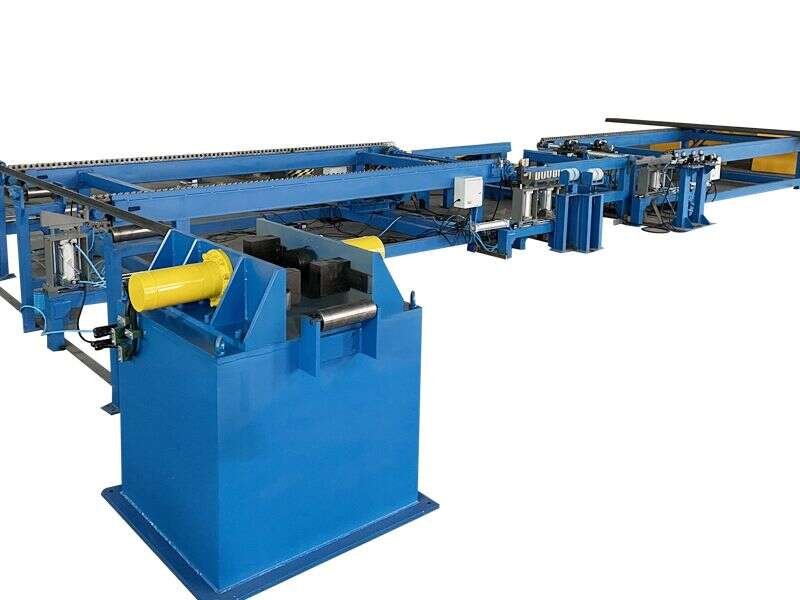

T45A T50A T70A Cold Drawn Guide Rail Conveyor Production Line Description of Conveyor Line Feeding Guide Rails—Manual Straightening Machine—Conveyor Line— Male and Female Milling machine—Punching Machine—Conveyor Line Semi-automatic metal processing production line Applicable range of products: T45 T50A T70A Length: 4m,5m,6m Produce Time: based on operator proficiency level. Transverse conveying system: flexible transport with double row top roller chain. It is composed of frame, cycloidal pin wheel reducer, conveyor chain support, main drive shaft and tension device. The conveying method can realize multiple gathering and single processing of the guide rails in each processing position, thus shortening the transversal conveying time, making each processing section closely connected, logistics conveyor material rack should be firm and reliable, and no shaking in the normal working process. Reducing labor intensity and improve work efficiency. Guide rail sizing mechanism: milling material rack there are two pneumatic lifting frame, pneumatic lifting, artificial control, 4 meter and 5 meter manual switching, positioning adjustment amount: 50mm, pedal pneumatic control during operation. Automatic Punching Device Conveying and Control 1 .The discharge area is provided with a discharge rack with a ball chain for lifting. 2 . The drive of the rack raceway is driven by a chain with a

Closed T Shape Hollow Guide Rail Roll Forming Making Machine Total Power：450KW Machine Speed：0-30m/min Floor Size：59*8*3M Forming Material：Q235 Galvanized strip Feeding Strip Width：Max.250mm Strip Thickness：1.5/2.0mm Decoiler：Max.OD2000mm Capacity Max.4000kg Looper: Diameter 4500mm, Storage Capacity Max.8000kg Sizing Length：0-5000mm GET A QUOTE! Introduction of Closed Hollow Guide Rail The closed section elevator pair reuse hollow guide rail, and the cross section of the guide rail is an inverted T shape with symmetrical shapes on both sides of the hollow; The bottom of the section is the section of the horizontal guide rail back, the sections of two guide rail surfaces equidistant from the midpoint are vertically arranged above the section of the guide rail back, and the sections of the guide surface parallel to the section of the guide rail back are arranged at the ends of the sections of the two guide rail surfaces to form a closed section. The beneficial effect is that the elevator has a closed section for reusing the hollow guide rail, The three guide surfaces of the hollow guide rail and the guide shoe lining plate are plane contact guide. In the process of cold bending and rolling forming of thin plate to manufacture the guide rail,

Roller Straightening Machine Machine Name: Electronic Precision Cnc Roller-conveying Feeder Coil Width: 100~600mm Coil Thickness: 0.2~3.2mm Straightening Leveling Speed: 20m/min Feeding Height: 70~180mm Release Equipment: Mechanical And Pneumatic GET A QUOTE! Introduction of Roller Straightening Machine The profile straightener is one of the parallel roll straighteners, which belongs to the straightening equipment of continuous and repeated bending. This straightener overcomes the shortcomings of intermittent work of the pressure straightener and improves the straightening efficiency by times. Most of the modern profile straighteners adopt cantilever structure, which is easy to change roll, easy to operate and flexible to adjust. This kind of straightening machine usually uses roll pitch and roll number to express its specification and performance. The straightened profiles include: I-shaped material, groove shaped material, angle shaped material, square material, flat material, rail and round material, etc. Performance introduction of machine This series of straightening machine adopts rolling bearing and centralized automatic lubrication system, which improves the straightening accuracy and durability. For models above ygj400, the axial and radial adjustment of straightening roller are equipped with electric adjustment device. Main parameter of roller profile straightening machine Type Description Universal Straightening Machine   YGJ350-14 1. Scope of straightening (max. size)

Elevator Guide Rail Automatic Punching Machine Name: Press Puncher Usage: Punching Holes Slide Stroke: 110mm Nominal Stroke: 6mm Slide Stroke Per Minute(Low Speed): Max Die Set Height: 360mm GET A QUOTE! Brief Introduction of Press Puncher A punch is a press. In the national production, the stamping process has the advantages of saving materials and energy, high efficiency, low technical requirements for the operator and making products that can not be achieved by machining through various mold applications, so its use is more and more extensive. Main functions and features Universal forging equipment, suitable for cutting, blanking, punching, forming, bending, shallow drawing and other stamping processes of various metal sheets, is one of the main equipment in the stamping production of various industrial departments.  Manual feeding during operation, and single machine automation can be realized when the feeding device is configured.In order to ensure the use process of 16t open tilting punch, it is necessary to ensure the contact of travel switch is flexible and reliable. In the actual selection, the 16t open inclinable press and inclinable press are generally distinguished from the following points: Speed: the general speed of open inclinable press is below 200 times, and that of

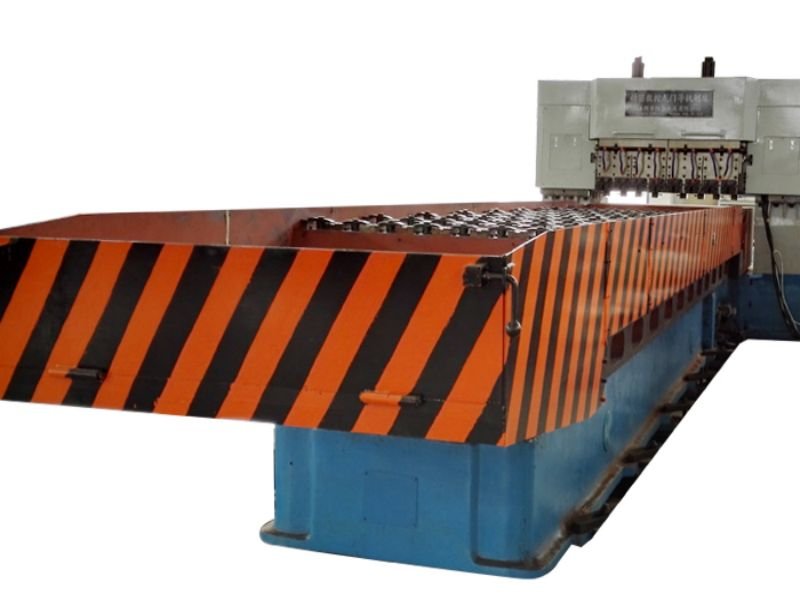

Elevator Guide Rail Gantry Planer Machine Product Name : Planer for Making Elevator guide rail Material : Carbon steel Size : 6000×1400mm Standard: T70-T127 Speed: 60m/min GET A QUOTE! Summary of Elevator Guide Rail Gantry Planer Machine A . This machine is our company according to the elevator guide rail processing requirement, absorb the modern advanced design method, adopt CAD design and modularized design method, configure domestic and foreign advanced functional components, elaborately designed a kind of electrical, automatic control, hydraulic control as one of the mechanical and electrical integration products. B . The machine tool uses servo motor, ball screw, linear guide and other precision transmission parts, all the action adopts numerical control. It can guarantee automatic feed, retreating knife, plane entry, vertical entry, deceleration and reversing and so on. The cutting and return stroke of the worktable can be independent speed regulation without stopping. C . The machine tools use concentrated pressure lubrication to reduce wear and improve the service life of machine tools, use pressure circulating water cooling, prolong the cutting period of cutting tools, and have all kinds of necessary safety protection devices to ensure the safety of operators and machine tools. D .The machine tool

T45A T50A T70A Elevator Guide Rail Manual Straightening Machine Applicable products range: T45,T50,T70A (cold drawn guide rail) Length: 4m, 5m Cycle time: It depends on the proficiency of the operator. Machine Size: 1200mm*1000mm*1000mm (L*W*H) The equipment consists: machine bed, fixed block, thrust cylinder, hydraulic pump station, etc. GET A QUOTE! Brief Introducion of T45A T50A T70A Elevator Guide Rail Manual Straightening Machine T45A T50A T70A Elevator Guide Rail Manual Straightening Machine: using manual method, according to the size of the guide rail, the value of the straightness of the blank guide rail is determined, and the guide rail operated by the operator can meet this requirement. Technical Parameters (1) Applicable products range: T45,T50,T70A (cold drawn guide rail), Length: 4m, 5m (2) Cycle time: It depends on the proficiency of the operator. (3) Machine Size: 1200mm*1000mm*1000mm (L*W*H) (4) The equipment consists: machine bed, fixed block, thrust cylinder, hydraulic pump station, etc. (5) The two main cylinders (thrust cylinders) have a bore diameter of 125 mm and a stroke of 160 mm. Working pressure of 16 MPa and a system operating pressure of 10 MPa. (6) The straightening machine body is made of 10# channel steel and 20MM Q235 steel plate. It

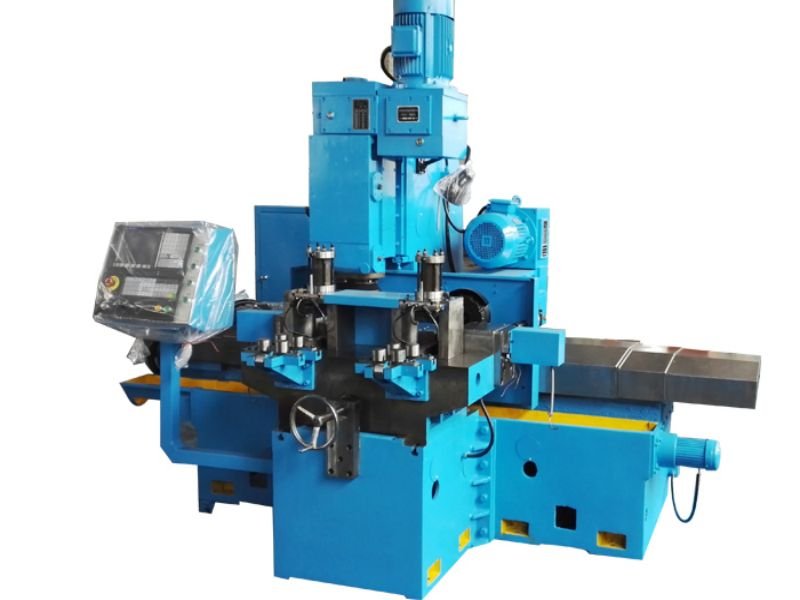

Elevator Guide Rail Male and Female Milling Machine Model: CNC Milling Machine Voltage: Three-phase AC 380V±5% 50HZ Main Motor Power: 5.5KW Cutter Shaft: Φ50mm Spindle Speed: 100~200mm GET A QUOTE! Elevator Guide Rail Male and Female Milling Machine Main Structure and Technical Features The machine consists of main components such as headstock components, column components, clamp components, counterweight components, lubrication systems, hydraulic systems, and electrical controls. The spindle box of machine tool is made of high quality castings. The spindle is driven by a 5.5kw, 4-pole motor to rotate the spindle. The speed is 50~220 rpm. The speed adjustment mode is frequency conversion. The end of the main shaft is BT50 standard shaft end number with 7:24 taper. The roll milling cutter shaft is inserted into the inner taper hole and fixed on the main shaft with tension bolt. The front bearing of the main shaft is composed of high-precision two-way angular contact ball bearing and double row cylindrical roller bearing with inner taper hole, which can bear two-way axial and radial loads, while the rear bearing is cylindrical roller bearing. The column components include column, servo motor and ball screw. It adopts servo motor drive, and then drives the

TK3A TK5A Hollow Elevator Guide Rail Cold Roll Forming Machine Thickness: Max. 3.2mm Forming Speed: Max. 15m/min Main Power: 11KW Total Power: Around 55KW Driven: Gearbox Diameter Of Shaft: 75mm Material Of Shaft: 42CrMov Roll Material: Cr12 Cutting Length: 6M Cutting Accuracy: ＋－2mm GET A QUOTE! TK3A TK5A Hollow Elevator Guide Rail Cold Roll Forming Machine Features This kind of roll forming machine is suitable for TK3 TK3A TK5 TK5A hollow guide rail and escalator guide rail, customers need provide their guide rails drawings. When producing hollow guide rails and escalator guide rails of different specifications, worker just need change machine rollers. The whole line adopts PLC control, LCD touch screen and human-machine interface. Realize the interaction between human and PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted. Real time monitoring of equipment operation status and fault indication. There are two operation modes: manual and automatic. It has the function of manual and automatic switching:

Escalator Elevator Guide Rail Cold Roll Forming Machine Usage: Escalator And Hollow Elevator Guide Rails Bearing model: 30213, nu213e, etc Brand: Harbin, NSK etc. Number of forming courses: about 23. Correct 5 channels, up 2 down 3. Forming line speed: 0-15m / min. Overall dimension of frame: About 17m × 1.5m × 1.5m. Standard: GB / t12755-91 Post welding treatment of frame: stress removal, shot blasting and rust removal, polishing, puttying, anti rust primer spraying and two finishing coats of high-grade polyurethane paint. Exquisite workmanship. Beautiful appearance. GET A QUOTE! Escalator Elevator Guide Rail Cold Roll Forming Machine Features 1. This Escalator Elevator Guide Rail Cold Roll Forming Machine is suitable for TK3 TK3A TK5 TK5A hollow guide rail and escalator guide rail, customers need provide their guide rails drawings. 2. When producing hollow guide rails and escalator guide rails of different specifications, worker just need change machine rollers. 3. The whole line adopts PLC control, LCD touch screen and human-machine interface. Realize the interaction between human and PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control

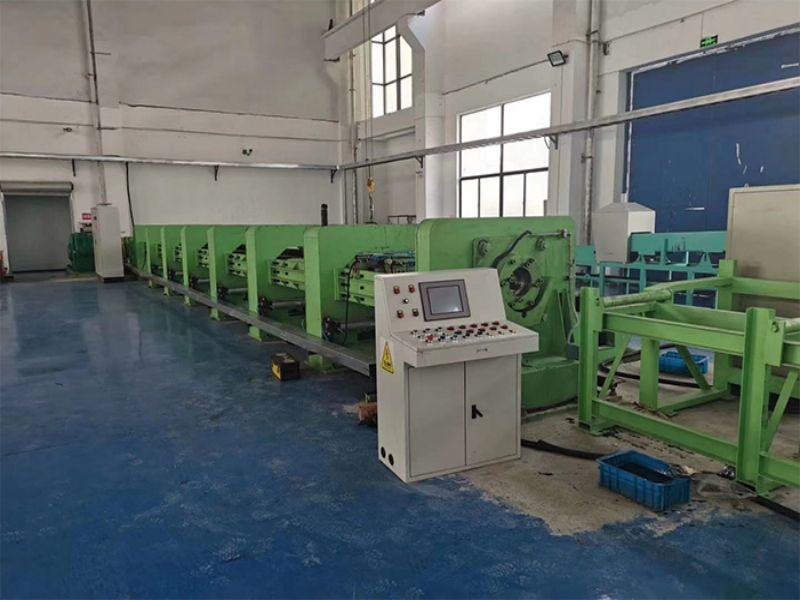

T Type Elevator Guide Rail Cold Drawing Machine Machine Name: Cold Drawing Machine Rated Drawing Length: 12.5M Rated Drawing Speed: 12m/min Speed Adjusts Range: 0~18m/min Rated Drawing Force: 300KN Motor Power: 75KW Motor Speed: 990rpm Pitch: 180mm GET A QUOTE! Breif Introduction of T Type Elevator Guide Rail Cold Drawing Machine T Type Elevator Guide Rail Cold Drawing Machine is a kind of mechanical equipment which can stretch ferrous materials (bars, pipes) and non-ferrous materials under normal temperature. The cold drawing machine can also pull out various kinds of special materials such as square steel, hexagons and so on. The cold drawing machine produced by our factory is mainly for deep processing of metal materials. The products have the advantages of high machining precision, high efficiency and semi-automatic machining process. At the same time, it is easy to operate, low fault, simple maintenance and so on. After many years of manufacturing experience, we have accumulated and improved. Our equipment has reached the first-class level in China. It is trusted and praised by users all over the country. According to the principle of metal plastic deformation, the machine is used for cold drawing of low, medium and high carbon steel and
