Category: Sheet Metal Decoile

Sheet Metal Decoile

Automatic Feeding &straightening Machine (TUL Type)

Automatic Feeding &straightening Machine (tul Type) Machine Features Materials and straightening machines are integrated into one. The whole production line occupies little areas, and the feeding preparation is simple. The straightening working roller adopts 4-point pulley type fine-tuning device, which is suitable for the processing quality requirements with higher straightening accuracy. The solid roller is heat-treated, quenched HRC60, chrome plated and reground, with high hardness, wear resistance and long service life. It can be used with any feeder. It can be designed according to customers’ special requirements, and can reach the stepless speed change, the pressure arm device and the oil pressure expansion device to increase efficiency and improve safety. Machine Features  Model TUL-150 TUL-200 TUL-300 TUL-400   TUL-500 TUL-600 TUL-700 TUL-150A TUL-200A TUL-300A TUL-400A   TUL-500A TUL-600A TUL-700A  Material Width 150 200 300 400   500 600 700  Material Thickness 0.35~2.2 0.35~2.2 0.35~2.2 0.35~2.2   0.35~2.2 0.35~2.2 0.35~2.2  Material I.D 508 508 508 508   508 508 508  Material O.D 1200 1200 1200 1200   1200 1200 1200  Material Wight 1000 1000 2000 2000   4000 3000 3000 2000 2000 3000 3000   3000 4000 4000  Speed of Feed (Straightening) (m/m) 15 15 15 15   15 15 15

Read More »

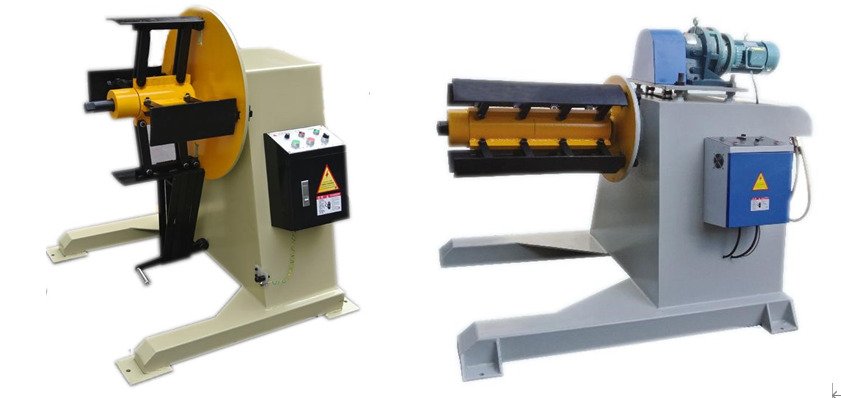

Automatic Material Rack
Sheet Metal Decoile

Automatic Material Rack (TC Heavy-duty)

Automatic Material Rack (tc Heavy-duty) Machine Features Suitable for more heavy volume of material feeding Can be used in conjunction with the optional no power type Maximum load can reach 30 tons Maximum material width can be customized 1800mm Optional press arm device Technical Specification  Model TC-300 TC-400 TC-500 TC-600 TC-700 TC-800 TC-1000 TC-1300  Stock sheet Width(mm) 300 400 500 600 700 800 1000 1300  Stock sheet Thickness(mm)     2      Coil Weight(kg) 500-1000 1000-2000   2000-3000   3000-5000 3000-5000  Coil O.D.(mm)     Ø1200      Coil I.D.(mm)     Ø450~Ø530      Motor Model(kw) 0.75 0.75 1.5   2.2-3.0    Supply voltage     AC220/380V     GET ONE-ON-ONE SERVICE Free of charge to provide you with technical advisory services. Provide product samples, business profiles, credit certificates and other information. I invite customers to visit the company’s product design, product manufacturing process, product prototype, product testing facilities and quality management system GET A QUOTE!

Read More »
Automatic Material Straightening Machine
Sheet Metal Decoile

Automatic Material Straightening Machine (TV Type)

Automatic Material Straightening Machine (tv Type) Material Width: Max. 150mm Material Of Coil: All Kinds Of Steel Thickness: 0.35~3.5mm Speed: 15m/min GET A QUOTE! MACHINE FEATURES Roller chrome plated, very durable, long service life After being straightened by the machine, the material is smooth and without indentation, and does not damage the surface of the material. It is suitable for all kinds of metal plates. This machine adopts Japanese electromagnetic contact system and electronic parts, and has long service life. This machine can be used separately, and can be used together with the TC type Technical Specification  Model TV-150 TV-200 TV-300 TV-400 TV-500 TV-600 TV-700 TV-700A TV-800 TV-800A TV-1000 TV-1000 A TV-1300 TV-1300A TV-1600 TV-1600A TV-150A TV-200A TV-300A TV-400A TV-500A TV-600A TV-150B TV-200B TV-300B TV-400B TV-500B TV-600B  Material Width 150 200 300 400 500 600 700 800 1000 1300 1600  Material Thickness 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2 0.35-2.2 . 0.35-3.2 0.35-2.2 0.35-3.2 0.35-2.2 0.35-3.2 0.5-2.2 05-2.2 0.35-3.2 0.35-3.2 0.35-3.2 0.35-3.2 0.35-3.2 0.35-3.2 0.5-3.5 0.5-3.5 0.5-3.5 0.5-3.5 0.5-3.5 0.5-3.5  Speed of Feed (straightening)(m/m) 15 15 15 15 15 15 15 15 15 15 15  Motor(HP) 1/2 1 1 2 3 3 3 5 5 7.5 7.5 10 15 20 1

Read More »
Sheet Metal Decoile

Precision Straightener

Precision straightener Precision Straightener is a precision machine, available in SAL and SBL versions, for processing different material thicknesses. SAL precision straightener SBL middle thickness plate precision leveling machine Parameters SAL precision straightener 型号 Model SAL-150 SAL-200 SAL-300 SAL-400 材料宽度 Material Width 150 200 300 400 材料厚度 Strip Thickness(mm)   0.1-0.8   滚轮排列 Roller arrangement   ∮20 2/3+2/2+7/8   调整方式 Adjustment mode   四点独立式 Four point independent   整平速度 Leveling speed   0-16M/min   马达 Motor 1/2HP 1HP 2HP 送料方向 Feeding direction   左→右 Left to right   使用电压 Use voltage   AC:380V   SBL middle thickness plate precision leveling machine 型号 Model SBL-200 SBL-300 SBL-400 SBL-500 SBL-600 材料宽度 Material Width 200 300 400 500 600 材料厚度 Strip Thickness(mm)     0.3-1.5   滚轮排列 Roller arrangement     ∮32 上 10/下 10 ∮32 Upper10/down 10   调整方式 Adjustment mode     四点独立式 Four point independent   整平速度 Leveling speed     0-16M/min   马达 Motor   1HP 2HP 3HP 送料方向 Feed direction     左→右 Left to right   使用电压 Use voltage     AC:380V   Characteristics of material straightener For high-speed stamping, it can improve the quality and quantity of punch products. It is impossible to produce good stamping parts by

Read More »
3 In 1 N.C.Level Feeder
Sheet Metal Decoile

3 In 1 N.C.Level Feeder

3 in 1 N.C.Level Feeder Standard Accessory Electric Eye Loop Control System. Feeding and Straightening rolls with a hard chrome-faced. Guide device for feeding port Hold down arms device. Feeding line easily adjusted by advanced worm gear screw jacks Screw rod adjusting device is adopted for height of feeding line. Reference in dicator adjuster. Material rack contain frequency converter. The uncoil contain the butterfly brakes air compressor. Threading tables device. Pneumatic Coil tip flatness device. Coil width side guide. Option Accessory Die-high electric conditioning. Hydraulic Material Feed-ln Cart. NCMB2 Dimensions Technical Specification  Model NCMF-400 NCMF-500 NCMF-600 NCMF-800 NCMF-1000  Thickness of material 0.8~4.5mm 0.8~4.5mm 0.8~4.5mm 0.8~4.5mm 0.8~4.5mm  Width of material 50~400mm 50~500mm 50~600mm 50~800mm 50~1000mm  Feed roller 2set 2set 2set 2set 2set  Straightening roller                           upper5/lower4  Production speed 16m/min 16m/min 16m/min 16m/min 16m/min  Weight of material coil (Kg) 2000 2000 3000 3000 5000  Inside dia.of material coil(mm) Ø508  Outside dia.of material coil(mm) Ø1400 Ø1400 Ø1400 Ø1400 Ø1400  Uncoil motor 1.5KW 1.5KW 2.2KW 2.2KW 3.0KW  Feed Drive Servo Motor(kw) AC1.8 AC2.9 AC2.9 AC4.4 AC4.4  Feed level ±100Customer request±100  Uncoil expansion  Hydraulic Operation  Hydraulic expansion  Air pressure kg/cm2 5kgf/cm2 5kgf/cm2 5kgf/cm2

Read More »
NCMB2 3 in 1 servo material rack leveling feeder
Sheet Metal Decoile

NCMB2 3 In 1 Servo Material Rack Leveling Feeder

NCMB2 3 in 1 servo material rack leveling feeder NCMB2 3 In 1 Servo Material Rack Leveling Feeder Features Large-screen color touch screen (Japanese), servo motor, switch, inverter, bearing, imported technology and materials imported from Japan, ensuring feeding accuracy, creating irreplaceable differential competitiveness in large-scale feeding of vehicles and feeding equipment of three C products. Straightening roller and feeding roller – bearing steel (SUJ2) is heat treated, quenched, hard chrome plated, ground, HRC 60 degrees or more. Copper lining – all with self-lubricating bearings (OILESSMETAL) or copper lining. All the gears are quenched, and the chain and keyway are assembled using tight manual precision fit. Leveling adjustment – using four-point turbine type hand wheel and dial indicator, it can be precisely adjusted and easily read out the value of 0.1mm. After leveling, the material can be adjusted to the upward or downward curvature and the required flatness degree. Control of the material – two sets of electric eye control type (Japan Omron brand). Inverter and disc brakes are added to reduce inertia and make material delivery perfect. The material of main spindle is high-strength medium carbon steel (the steel plate is Shanghai Baosteel or imported steel). The tempering treatment prevents

Read More »
Roller Straightening Machine display
Sheet Metal Decoile

Ncf Partial Tilting Cnc Feeding Machine

Ncf Partial Tilting Cnc Feeding Machine Machine Features Apply to the symmetry of alternative forms of processing feed synchronously with the partial pendulum movement, can save material (single-step migration) more than three quarters High speed linear bearing were adopted for offset sliding guide rail by special processing ,no noise, high abrasion resistance, small friction load, smooth move quickly. Partial tilting and feeding are completed synchronously, improve the efficiency of secondary feed production. Servo (stepper motor) micro-computer control system.  Number of offset feed up 30p/min. Technical Specification  Model NCF1-200 NCF1-300 NCF1-400 NCF1-600 NCF1-800   NCF1-1000 NCF1-1300  Material Width(mm) 200 300 400 600 800   1000 1300  Feeding form      Standard feed / offset feed      Offset  left and right 100 left and right  150  left and right  200  left and right 300  left and right  400     left and right 500  left and right  650 Material Thickness 0-3.0 0-3.0 0-3.0 0-3.0 0-2.5   0-2..0 0-2.0 Relaxation mode     Pneumatic     GET ONE-ON-ONE SERVICE Free of charge to provide you with technical advisory services. Provide product samples, business profiles, credit certificates and other information. I invite customers to visit the company’s product design, product manufacturing process, product

Read More »
Electronic Precision Cnc Roller-conveying Feeder (ncf Type)
Sheet Metal Decoile

Electronic Precision Cnc Roller-conveying Feeder (NCF Type)

Electronic Precision Cnc Roller-conveying Feeder (NCF Type) Characteristic structure Driven by the most precision AC servo motor, the operation is simple and fast, which effectively shortens the work preparation time and increases productivity. The machine structure is integrated, the structure is precise, and the body is strong. The machine was developed by the experience Which is ideal for long term operations, long service life, high accuracy and (convenient mail) excellent durability. Hard chrome plated rollers low wear and high precision. Technical Specifications  Model NCF-100 NCF-100A NCF-200 NCF-200A NCF-300 NCF-300A NCF-400 NCF-400A NCF-500 NCF-500A NCF-600 NCF-600A  Material Width 100 200 300 400 500 600 Material Thickness (Standard Specification) 0.2-2.2 0.2-2.2 0.2-2.2 0.2-2.2 0.2-2.2 0.2-2.2 Material Thickness A-type 0.3-3.2 0.3-3.2 0.3-3.2 0.3-3.2 0.3-3.2 0.3-3.2  Feeding Length 9999.99 9999.99 9999.99 9999.99 9999.99 9999.99  Feeding Speed(m/min) 20 20 20 20 20 20  Servo Motor(kw) AC0.4/AC1.8 AC0.85/AC1.8 AC0.85/AC1. AC1.3/AC2.9 AC1.3/AC2.9 AC1.8/AC2.  Supply Voltage 220V Single-phase 220V Single-phase 220V Single-phase 220V Single-phase 220V ingle-phase 220V Single-phase  Pass Line Feeding height 70-180 70-180 70-180 70-180 70-180 70-180  Machine L*W*H 560*450*450 560*550*450 560*650*450 560*750*450 560*850*450 560*950*450  Release Equipment                                        Mechanical

Read More »
Sheet Metal Decoile

Double-head Material Rack Un-coiler (Without Motor)

Double-head Material Rack Un-coiler (Without Motor) Width Of Strip: 30-300mm Thickness Of Strip: ≤2mm Inner Diameter Of Coil: ф480-530 Mm(according To Customer’s Requirements) Outer Diameter Of Coil: φ1300mm Loading Weight: ≤1T GET A QUOTE! MACHINE FEATURES Lane up with leveler ( TV-Type), economy and practically. Save time for changing materials, increase production capacity, reduce costs and enhance Details information refers to the Introduction of TC-Type. competitiveness. TECHNICAL SPECIFICATIONS  Model MTD-200 MTD-250 MTD-300 MTD MTD-500 MTD-600 MTD-700  Material Width 200 250 300 400 500 600 700  Strip Thickness(mm) 2 2 2 2 2 2 2  Material I.D 450-530 450-530 450-530 450-530 450-530 450-530 450-530 GET ONE-ON-ONE SERVICE Free of charge to provide you with technical advisory services. Provide product samples, business profiles, credit certificates and other information. I invite customers to visit the company’s product design, product manufacturing process, product prototype, product testing facilities and quality management system GET A QUOTE!

Read More »
HBL Plate 2 In 1 Rack Straightening Machine
Sheet Metal Decoile

HBL Plate 2 In 1 Rack Straightening Machine

HBL Plate 2 In 1 Rack Straightening Machine Coil Thickness: 0.3~3.2mm Working Speed: 16~24m/min O.D. Of Coil: 1400mm Width Of Coil: Max.800mm I.D Of Coil: 508mm GET A QUOTE! Stanard Accessory Feeding and straightening rolls with a hard chrome-faced Feeding and discharging device Roll head flattening device Material rack with air pressure disc brake device Information of HBL PLATE 2 IN 1 RACK STRAIGHTENING MACHINE Model HBL-400 HBL-500 HBL-600 HBL-700 HBL-800  Material Width 400 500 600 700 800  Thickness of material   (0.3~3.2/0.5~4.5)    Max Coil Weight(KG) 2000   3000(5000) 5000(8000)    Coil I.D.(mm)   Ø508    Coil O.D.(mm) 1200   1200(1500)   Speed of (Feed) Straightening(m/min)   16    Drive Roll   入料 Feed:2    Work Roll   上 5/下 4 Upper 5/down 4   Correction Capability 400*2.3 500*1 .6 600*2.0 700*1.6 800*1.2   Uncoil Expansion Method   手动式 Manual/油压式 Hydraulic    Uncoil Motor(HP) 1.5 2.2   3.0    Straightener Motor 2 3   5   GET ONE-ON-ONE SERVICE Free of charge to provide you with technical advisory services. Provide product samples, business profiles, credit certificates and other information. I invite customers to visit the company’s product design, product manufacturing process, product prototype, product testing facilities and quality management

Read More »
