Category: Storage Rack Roll Forming Machine Collection

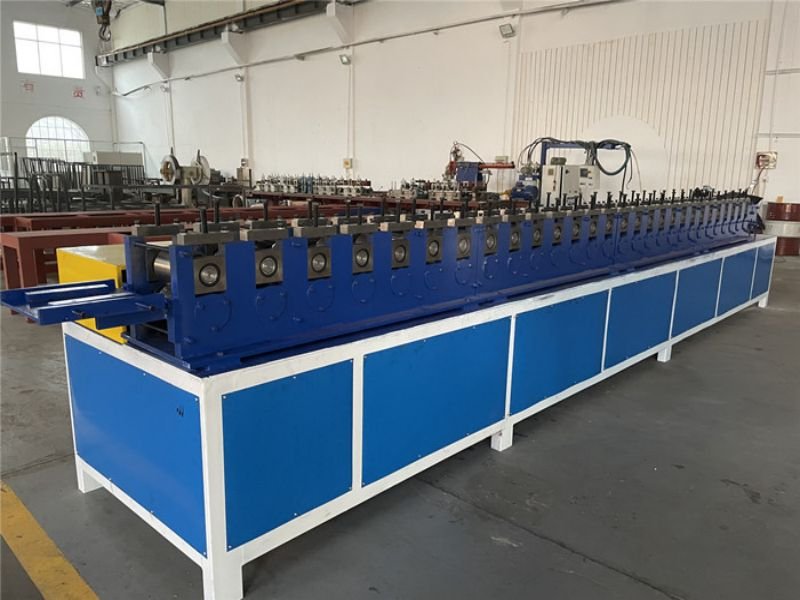

Shelf Upright Column Roll Forming Machine Diameter Of Shaft: 80mm Thickness: 1.5~5mm Width: Max. 1000mm Punch: Online Punching Forming Speed: 10~15m/min Usage: Supermarket Warehouse Storage Rack Shelves GET A QUOTE! Brief Introduction of Shelf Upright Column Roll Forming Machine With the popularization of steel structure, more and more special-shaped steel has been widely used in various fields. After feeding, forming and after forming, the special-shaped metal plate roller press has smooth and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings, such as workshop, warehouse, locomotive shed, hangar room, gymnasium, exhibition hall, theater and other surface walls. The stroage rack roll forming machine consists of feeding decoiler device, roll forming machine, PLC computer control system, hydraulic pump station system and automatic cutting system. https://www.youtube.com/watch?v=NlGbUqeoCM0 Shelf Upright Column Roll Forming Machine Woring Process Decoiler —– Leveling (Straightening) —– Roll Forming —– Punching —– Cutting —– UnloadingOrDecoiler —– Leveling (Straightening) —– Punching —– Roll Forming —– Cutting —– Unloading Advantages of shelf-type upright column rotomoulding machines The structure we use for this machine has higher working mechanical properties. The roller is processed by secondary numerical control and quenched, HRC 58-62. It is designed to

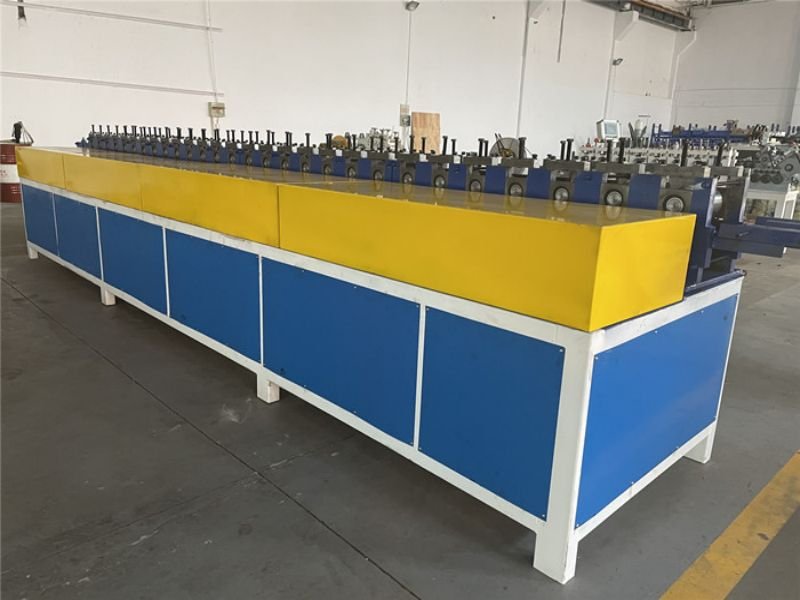

Shelf Stud Roll Forming Machine Diameter Of Shaft: 80mm Thickness: 1.5~5mm Width: Max. 1000mm Punch: Online Punching Usage: Supermarket Warehouse Storage Rack Shelves GET A QUOTE! Features of Shelf Stud Roll Forming Machine Function and structure: metal steel plate will through 20 rolls, the plate is gradually rolled into the finished bracket. It is composed of variable frequency motor, reducer and roller group. The bed adopts the welding structure to eliminate the stress. The roller adopts combined structure, with small speed difference, small forming resistance and small steel plate surface wear. The roller process design adopts imported software, computer design and finite element analysis to ensure the shape accuracy of the workpiece without scratching the steel plate. The roll is forged with Cr12 and processed by numerical control after overall quenching. The hardness can reach HRC58-62. It has the characteristics of high strength, high hardness, high precision and long service life. https://www.youtube.com/watch?v=NlGbUqeoCM0 Main Technical Parameters of Shelf Stud Roll Forming Machine 1. Profile .Thickness:2.0mm 2. Process flow Decoiling—feeding—leveling—punching—forming—cutting—production 3. Manual decoiler 1).Material coil inner diameter: 450mm-550mm2).Max coil width: 600mm3).Carrying capacity: 1500kg 4. Punching machine 60t Automatic punch holes(with one set of mold) 5. Forming system 1).Number of forming steps:2 steps feeding rollers,4

Rack Roll Forming Machine Forming Speed: Max. 15m/min Roll Forming Station: 18~20 Stations Diameter Of Shaft: 95mm Roller Material: Cr12 Steel Profile: Heavy Duty Warehouse Supermarket Rack GET A QUOTE! Features and purpose of Rack Roll Forming Machine The Rack Roll Forming Machine adopts arch shape to strengthen its firmness, gearbox transmission to run stably, adopts mould pressing shear to avoid hole deformation and improve product quality. The product is widely used in steel structure building purlin erection. Rack Roll Forming Machine Woring Process  Decoiler —– Leveling (Straightening) —– Roll Forming —– Punching —– Cutting —– UnloadingOrDecoiler —– Leveling (Straightening) —– Punching —– Roll Forming —– Cutting —– Unloading Equipment Technical Requirements of Roll Forming Machine No Items Model 1 Floor Space 15*1.5*1M 2 Voltage According to countries requirements 3 Hydraulic Oil #46 4 Gear Oil #18 5 Gas Source Flow: 0.5m3/minPressure: 0.6MPa. Main Technical Parameters of Rack Roll Forming Machine 1 Suitable material Color steel sheet , galvanized steel sheet 2 Main motor power 15 KW with Cycloidal reducer 3 Hydraulic station power 11KW 4 Hydraulic oil 45# 6 Thickness 1.5mm~5mm 7 Diameter Φ95mm 8 Electric tension 380V 3phase 50HZ 9 Material of roller High grade 45# forged steel 10

shelf back layer Roll Forming Machine Type: Tile Forming Machine Production Capacity: 8-12m/min Use: shelf board Dimension(L*W*H): 7500*1200*1000mm Rolling thinckness: 0.7-1.2mm Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine GET A QUOTE! Description of shelf back layer Roll Forming Machine The production line integrates uncoiling, leveling, forming, cutting, punching, receiving and related processes. The whole production line is controlled by PCL program. The operator can select a preset program through the touch screen to automatically run the whole line. The operation methods include automatic control, manual control, separate operation and emergency stop. Advantages of our shelf back layer Roll Forming Machine 1. Good quality: we have a professional designer and experienced engineer team, we use good raw materials and accessories.2. Good service: we provide technical support for the whole life of the machine.3. Guarantee period: within one year from the end of commissioning. The warranty covers all electrical, mechanical and hydraulic components except vulnerable parts.4. Simple operation: the whole machine is controlled by PLC computer control system.5. Elegant appearance: rust proof, customized color6. Reasonable price: we offer the best price in the industry. https://www.youtube.com/watch?v=NlGbUqeoCM0 Applications of shelf back layer Roll Forming Machine Storage rack, storage shelf, Steel rack,steel
