Category: V Band Clamp Roll Forming Machine

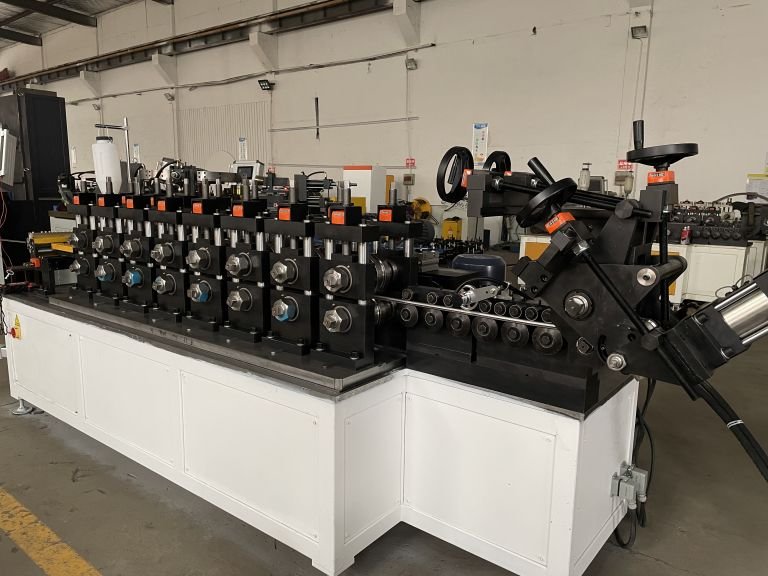

3MM V Band Clamp Automatic Forming Machine
V Band Clamp Roll Forming Machine

3MM V Band Clamp Automatic Forming Machine

Floor Area:18×3.5×2(L×W×H)M Voltage:380V,50Hz,3 Phase Air Supply:Flow Rate:0.5m³/min; Pressure: 0-0.7MPa Hydraulic Fluid:46# Gear Oil:150# Width of Strip:≤80mm Thickness of Strip :≤3mm GET A QUOTE! Introductory The 3mm V Band Clamp Automatic Forming Machine is a specialized piece of equipment designed to automate the process of manufacturing V band clamps, which are crucial components in various industrial, automotive, and aerospace applications. This machine streamlines the production process, ensuring high efficiency, precision, and quality in the final product. https://www.youtube.com/watch?v=DfhkKy-1Uiw Machine Characteristic The thickest clamp that this clamp can make is 3mm The machine can make whole circles and any other segment size The machine has a quick change function and is equipped with a zero point positioning system, which can accurately locate and install in 5 seconds, reducing the time for mold replacement and greatly improving production efficiency Machine Technical Parameters and Description Machine Parameters Items Technical Requirements Production Process   De-coiler — Leveling — Roll Forming — Rolling Head — Cut off Floor Area 18×3.5×2(L×W×H)M Feeding Direction From Left to Right Voltage 380V,50Hz,3 Phase Air Supply Flow Rate:0.5m³/min; Pressure: 0-0.7MPa Hydraulic Fluid 46# Gear Oil 150# Material of Strip Stainless Steel Width of Strip ≤80mm Thickness of Strip   ≤3mm Speed 20

Read More »

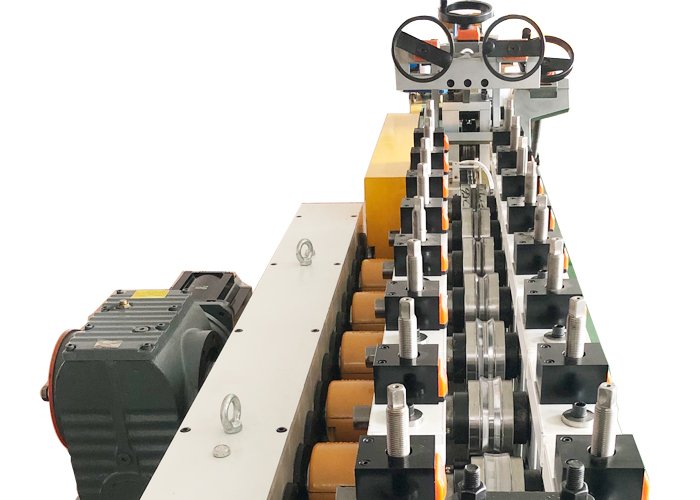

V Clamp Roll Forming Machine
V Band Clamp Roll Forming Machine

V Clamp Roll Forming Machine

V Clamp Roll Forming Machine Usage: Omega V Band Clamp Diameter: 55~800mm Thickness Of Coil: 0.8mm To 3mm Width Of Coil: 30mm ~ 120mm Material Of Rollers: Cr12Mov Stations: 8 Stations Motor: Servo Motor 11KW GET A QUOTE! V Clamp Roll Forming Machine Technical Parameters and Description 1、Machine Parameters No Items Technical Requirements 1 Production Process   De-coiler — Crop —Forming — Rolling Head 2 Floor Area 8×2.5×2(L×W×H)M 3 Feeding Direction From Left to Right 4 Voltage 415V,50Hz,3 Phase 5 Air Supply Flow Rate:0.5m³/min; Pressure: 0-0.7MPa 6 Hydraulic Fluid 46# 7 Gear Oil 150# 8 Material of Strip Stainless Steel 9 Width of Strip ≤80mm 10 Thickness of Strip ≤1mm 11 Speed 10 components per minute 12 Length Tolerance ±0.5mm 13 Total Power Around 10 KW 2. Electric Elements Brand No Items Brand Model 1 PLC Mitsubishi   2 HMI MCGH   3 Electric Elements Schneider   4 Bearing NSK,NTN   5 Servo Motor Yaskawa   7          Safety Relays PILZ   8      Magnetic Interlock Switches Allan Bradley 440K-T11090 9 Digital Position Display SIKO   10          Hydraulic system HUADE    3、Machine Parameters Decoiler with Pressing Arm Guide Device Accurate introduction of the first forming wheel, with digital display, detection of head and tail of

Read More »
V Segment Roll Forming Machine-Roll Forming Machine
V Band Clamp Roll Forming Machine

V Segment Roll Forming Machine

V Segment Roll Forming Machine Usage: Omega V Band Clamp Diameter: 55~800mm Thickness Of Coil: 0.8mm To 3mm Width Of Coil: 30mm ~ 120mm Material Of Rollers: Cr12Mov Stations: 8 Stations Motor: Servo Motor 11KW GET A QUOTE! Our Roll Forming Machine Applications V Band Clamp Locking Ring Ring Clamps GASKETS FLANGES G COUPLINGS AIRCRAFT CLAMPS This kind of roll forming machine uses stainless steel as raw material, through decoiler, straightening, roll forming and cutter processes, it can produce all kinds of clamping rings. Machine Parameters No Items Technical Requirements 1 Production Process   De-coiler — Leveling — Roll Forming — Rolling Head — Cut off 2 Floor Area 15×2.5×2(L×W×H)M 3 Feeding Direction From Left to Right 4 Voltage 380V,50Hz,3 Phase 5 Air Supply Flow Rate:0.5m³/min; Pressure: 0-0.7MPa 6 Hydraulic Fluid 46# 7 Gear Oil 150# 8 Material of Strip Stainless Steel 9 Width of Strip ≤80mm 10 Thickness of Strip   ≤2.8mm 11 Speed 10 components per minute for diameter 378mm 15 components per minute for diameter 248mm 20 to 25 components per minute for diameter 115.8 to 127.4mm 20 to 25 components per minute for diameter 127.4 to 155.8mm 20 to 35 components per minute for diameter 72.6 to

Read More »
V Band Clamp Roll Forming Machine

Omega Clamp Roll Forming Machine

Omega Clamp Roll Forming Machine Usage: Omega V Band Clamp Diameter: 55~800mm Thickness Of Coil: 0.8mm To 3mm Width Of Coil: 30mm ~ 120mm Material Of Rollers: Cr12Mov Stations: 8 Stations Motor: Servo Motor 11KW GET A QUOTE! Our Omega Clamp Roll Forming Machine Advantages High Speed, High Capacity and Stable Performance Just need one time to formed instead of use punching machines, shear machines and other machines Save time, save cost Improve production efficiency and clamping rings quality The pass stations are easy to disassemble, install and maintain The lubrication system for segment forming will be self-contained within the machine. The excess lubrication from the forming process will be re-circulated, filtered and re-used. Omega Clamp Roll Forming Machine Application This kind of roll forming machine uses stainless steel as raw material, through decoiler, straightening, roll forming and cutter processes, it can produce all kinds of clamping rings. Frequency converter controls motor speed, PLC system automatically controls length and quantity, realizes continuous automatic production, and is an ideal equipment in cold roll forming industry. Omega Clamp Roll Forming Machine Working Process Decoiler —— Leveling (Straightening)  —–    Roll Forming and Cutting Main Devices of Roll Forming Machines No Items Model

Read More »
Locking Inner Ring Clamp Roll Forming Machines-Cold bending machinery manufacturers
V Band Clamp Roll Forming Machine

Locking Inner Ring Clamp Roll Forming Machines

Locking Inner Ring Clamp Roll Forming Machines Speed: 30 Components For One Minute Hoop Barrel Clamp Ring Material: 304 Stainless Steel Thickness Of Coil: 0.8mm To 3mm Material Of Rollers: Cr12Mov Width Of Coil: 30mm ~ 120mm GET A QUOTE! Introduction of Locking Inner Ring Clamp Roll Forming Machines Introduction of the ring clamp: It consists of a shallow integral v-flange retainer and two bands for positioning and securing the selected closure type. The ring clamp is light in weight and compact in structure, which is widely used in various industrial sectors to pull and fix two circular flanges. Compared with the v-clamp, the ring clamp is a low-cost clamping solution. Introduction of our machines: Two V-shaped flanges are produced by one-step roll forming and cut to at the end of the machine. We adopt frequency converter motor or servo motor to control speed, PLC and HMI to control flanges length and quantity. Product Application This kind of roll forming machine uses stainless steel as raw material, through decoiler, straightening, roll forming and cutter processes, it can produce all kinds of clamping rings. Machine Parameters No Items Technical Requirements 1 Production Process   De-coiler — Leveling — Roll Forming — Rolling Head — Cut

Read More »
